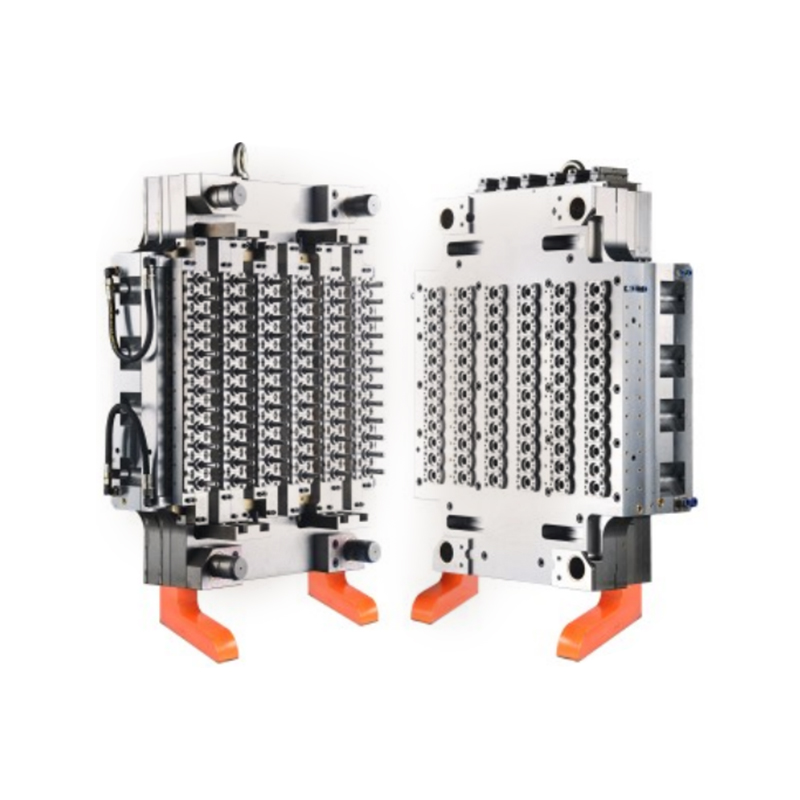

Valve Pin Gate 72 Cavity Preform Mould

Our Valve Pin Gate 72 Cavity Preform Mould is meticulously crafted with a 6x12 layout, providing a total of 72 cavities for high-volume production. The distance between centres is set at 50mm horizontally by 130mm vertically, ensuring better cavity distribution and uniformity in the moulding process. The screw end dimensions are precisely 28/30mm, which is crucial for compatibility with various injection moulding machines.

The mould size is a robust 730mm in width and 1050mm in height, offering ample space for intricate design features and ensuring that the mould is sturdy and stable during operation.

The core of our mould is made from high-quality, imported nitrided steel. This material is renowned for its high hardness, which translates to a longer service life and resistance to wear. The durability of our moulds is a testament to our commitment to providing tools that stand the test of time.

At the heart of our mould lies an advanced hot runner system. This design ensures uniform heating temperature across all cavities, which is essential for maintaining the consistency and quality of the plastic products produced. The hot runner system also minimizes material waste, contributing to a more sustainable and cost-effective production process.

One of the standout features of our mould is the use of valve pin gates. These gates are designed to reduce the labour intensity for workers, as they facilitate easier and more efficient part ejection. The valve pin gate system also helps to minimize the occurrence of defects such as knit lines and short shots, thereby improving the overall quality of the finished products.

We guarantee that the mould life will exceed 5 million shots. This is a reflection of the high quality materials and construction techniques used in the creation of our moulds. Our commitment to quality extends to ensuring that our customers can rely on our moulds for long-term use without frequent replacements or repairs.

The use of an advanced hot runner system ensures that the AA value (a measure of the surface finish quality) of the product is kept at a low level. This means that the surface of the plastic products produced by our mould will be smooth and free from imperfections, meeting the stringent quality requirements of various industries.

Our mould features a carefully designed cooling channel system. This design enhances the cooling effect of the mould, allowing for more efficient heat dissipation. As a result, the injection cycle is effectively shortened, consequently increasing production rates and improving efficiency.

We understand that even the better tools require maintenance and occasional service. Our team of experts is always on hand to provide support and guidance, ensuring that our customers can keep their moulds in nice condition and continue to produce high-quality products with minimal downtime.

We recognize that every production need is unique. As such, we offer customization options for our Valve Pin Gate 72 Cavity Preform Mould to suit specific customer requirements. Whether it's adjustments to the layout, modifications to the gate system, or alterations to the cooling channels, we are here to work with you to create a mould that nicely fits your production needs.

In conclusion, our Valve Pin Gate 72 Cavity Preform Mould is a testament to our dedication to innovation, quality, and customer satisfaction. It is a tool that is designed to excel in the demanding world of injection moulding, offering a combination of precision, durability, and efficiency that is second to none. Choose our mould for your production line, and experience the difference that advanced engineering and high-quality materials can make.
